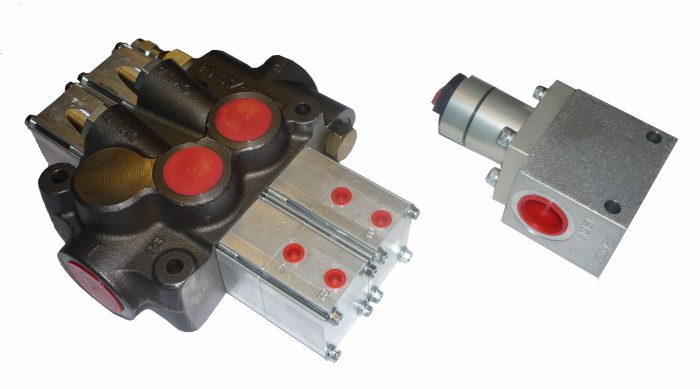

Truck Valves
Click to enlarge
Home Products Control Valves Oilpath Truck & Trailer Tipper Valves – Hydraulic & Air Control Solutions
Hydraulic MT Motors
MT Motors
Back to products
Hydraulic Suction Strainer
Suction Strainers
  • Hoist Check Valve (299 KB)
  • OP22 Tipper Valve (324 KB)
  • OP25 Proportional Air Actuated Truck Valve (278 KB)

Oilpath Truck & Trailer Tipper Valves – Hydraulic & Air Control Solutions

Category: Control Valves
Share:
  • Description
  • Enquire
Description

High-Performance Oilpath Tipper Truck Air Valves and Hydraulic Tipper Valves

Our range of Oilpath tipper truck air valves, hydraulic tipper control valves, and trailer tipper valves are engineered for reliability, safety, and efficiency in heavy-duty applications. From hoist check valves to proportional lowering systems, Oilpath valves deliver proven performance for transport, construction, agriculture, and mining.

Overview of Oilpath Hydraulic Tipper Valves

  • 100% designed and manufactured by Oilpath in Australia

  • Purpose-built for tipper trucks and trailer hoist applications

  • Options for pneumatic, proportional, and manual control

  • Constructed with hardened seats, chrome-plated spools, and dirt-tolerant relief valves for extended service life

  • Large tank galleries for efficient oil flow and reduced pressure drop

Technical Specifications of Oilpath Tipper Valves

  • Operating Pressure: Up to 245 bar (3,000 psi)

  • Flow Capacity: 140–160 l/min depending on model

  • Port Connections: BSPP service and tank ports

  • Control Options: Pneumatic, proportional air-actuated, and manual handles

  • Features: Leak-free sealing, optional slow lowering, HydraForce reliefs, and durable construction

Our Oilpath Range of Tipper Truck & Trailer Valves

Oilpath Hoist Check Valve – Pneumatically Operated (150 l/min)

  • In-line, direct acting Oilpath hoist check valve for block or load holding

  • Operation:

    • Raise: Port 1 → Port 2

    • Lower: Port 2 → Port 1

  • Features: Hardened seats for long life, manual override, low leakage (0.15cc/min), low pressure drop

  • Ratings: 207 bar max pressure, 80 psi air pressure, 1” BSPP service ports

Oilpath OP22 Tipper Valve – Pneumatically Operated Truck Valve (140 l/min)

  • Twin spool Oilpath truck tipper valve with proportional operation

  • Maximum pressure: 245 bar

  • 1” BSPP service ports & 1¼” BSPP tank port

  • Options: HydraForce port reliefs, slow lowering, handle/air operation

  • Cast and manufactured in Australia

  • Part Numbers:

    • OP22 2000 R3 = Standard 140 l/min

    • OP22 2000 R3 PR = With HydraForce port reliefs

    • OP22 2000 R3 SL = With slow lowering

    • Add H1 or H12 for handle options

Oilpath OP25 Proportional Air Actuated Truck Valve (160 l/min)

  • Designed for cab-mounted operation

  • Provides smooth, infinitely variable lowering control

  • Flow capacity: 160 l/min

  • Max working pressure: 240 bar

  • Features dirt-tolerant relief valve, chrome-plated spool, and large tank galleries for fast lowering

Applications of Oilpath Tipper Valves

  • Heavy Transport & Logistics – Safe, efficient hoist control

  • Construction & Civil Works – Hydraulic control for tipper bodies and trailers

  • Agriculture & Farming – Load holding and controlled lowering for machinery

  • Mining & Quarrying – Rugged, reliable valves for demanding environments

Why Choose Oilpath Tipper Control Valves?

  • Australian-made Oilpath valves – built for local conditions

  • Wide range: hoist check valves, pneumatic and proportional truck valves

  • Leak-free, long-lasting performance with hardened internal components

  • Supported by Gerrard Hydraulics in Perth, WA – your trusted local supplier

Get Oilpath Tipper Valves in Perth, WA

Looking for Oilpath tipper truck air valves, trailer tipper valves, or Oilpath hydraulic control valves in Perth? Gerrard Hydraulics is your authorised supplier, offering expert advice, stock availability, and after-sales support.

Call Gerrard Hydraulics today to order your Oilpath tipper valves or get help choosing the right solution for your fleet.
