Galtech Q75 Electrical & Manual Directional Control Valves
Reliable Hydraulic Control for Demanding Applications
The Galtech Q75 valve is part of the trusted range of Galtech hydraulic valves, designed and manufactured in Italy for performance, durability, and precision. Known for their reliability in demanding conditions, Galtech valves are widely used in construction, agricultural, and industrial machinery across Australia.
As a leading supplier of Galtech valves in Perth, Gerrard Hydraulics provides the Q75 series in both manual lever-operated and 12V/24V electro-hydraulic options, ensuring smooth and accurate control of hydraulic cylinders and motors. Whether you’re looking for a 5 spool hydraulic control valve or a compact single spool unit, the Q75 delivers dependable flow control for every application.
Our Range of Galtech Q75 Directional Control Valves
Single to Multi-Spool Configurations
The Galtech Q75 directional control valves are available from 1 to 6 spool sections, offering flexibility to suit different hydraulic systems. Each spool can be set up as double-acting, single-acting, or motor spools, giving operators precise control.
- Q75/1-103A1D41 – 1 Spool (75 L/min, 300 bar, 8.1kg)
- Q75/2-103A1D41 – 2 Spools (12.4kg)
- Q75/3-103A1D41 – 3 Spools (17.6kg)
- Q75/4-103A1D41 – 4 Spools (22.0kg)
- Q75/5-103A1D41 – 5 Spools (26.5kg)
- Q75/6-103A1D41 – 6 Spools (31.0kg)

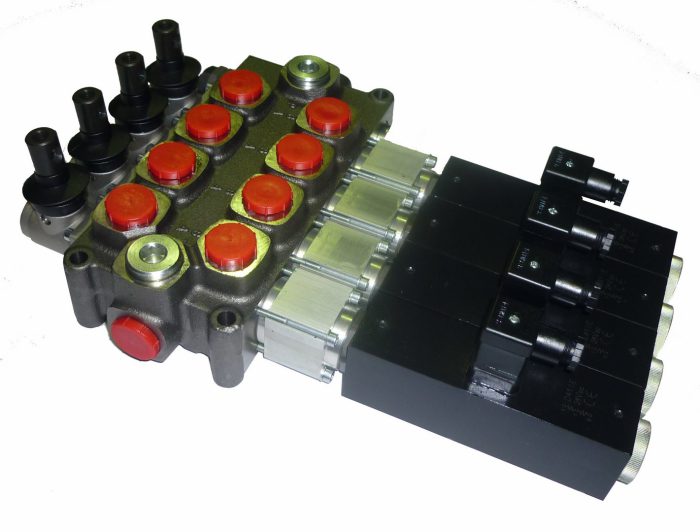

Electric & Manual Operation
The Q75 series offers Galtech control valve solutions for both lever operation and electro-hydraulic actuation (12V/24V). Each valve is supplied with DIN 43650 connectors, IP65-rated solenoid coils, and levers, making them suitable for high-demand applications.
Key Specifications
- Construction: Monoblock, case-hardened steel body
- Flow Capacity: 75–90 L/min
- Max Working Pressure: 300 bar (4350 psi)
- Tank Back Pressure: Max. 25 bar
- Adjustable Relief Valve: Factory set at 150 bar (2100 psi), with higher options available
- Port Sizes: 1/2” BSPP (inlet & cylinder), 3/4” BSPP (tank)
- Operating Temperature: -20°C to +80°C
- Spool Return: Spring-centred with lever action
- Optional Features: Detent kits, power beyond sleeve, anti-shock/anti-cavitation valves, full electric operation
Applications of the Galtech Q75 Valves
The Galtech Q75 hydraulic valve is trusted for accurate flow management and control in:
- Tilt tray trucks
- Skip bin trucks
- Front-end loaders
- Backhoes
- Cranes and lifting equipment
- Agricultural, mining, and construction hydraulics
With its adjustable pressure relief valve and robust steel body, the Q75 is engineered for long-lasting use in tough Australian conditions.
Looking for Galtech Valves in Australia?
If you’re searching for Galtech valves near me or want expert advice on choosing the right Galtech valve in Perth, Gerrard Hydraulics is here to help. We supply the full range of Galtech directional control valves, including the Galtech Q75 valve, to suit your pressure, flow, and temperature requirements.
📞 Call us today on 08 9455 2344 or visit us at 39 Sorbonne Crescent, Canning Vale WA 6155 to speak to our hydraulic specialists.
